The X870E AORUS PRO ICE is engineered to support AM5 Processors, delivering unrivalled performance for gaming and content creation. This cutting-edge motherboard not only elevates your system’s capabilities but also ensures stability under intense workloads. With an enhanced power design, the GIGABYTE X870 motherboard maximizes efficiency, making it a formidable choice for enthusiasts.
Equipped with DDR5 compatibility, this motherboard features four DIMM slots with AMD EXPO support, allowing users to harness the next generation of memory technology. The architecture is built to accommodate the AMD Ryzen 9000, Ryzen 8000, and Ryzen 7000 Series processors.
The advanced power design consists of a robust 16+2+2 layout with 80A Smart Power Stage, providing stable and reliable power to your CPU. This ensures optimal performance and longevity of your components, even during demanding tasks.
In terms of thermal management, the motherboard incorporates a VRM and M.2 Thermal Guard, safeguarding sensitive components against overheating. This design not only enhances durability but also contributes to sustained high performance.

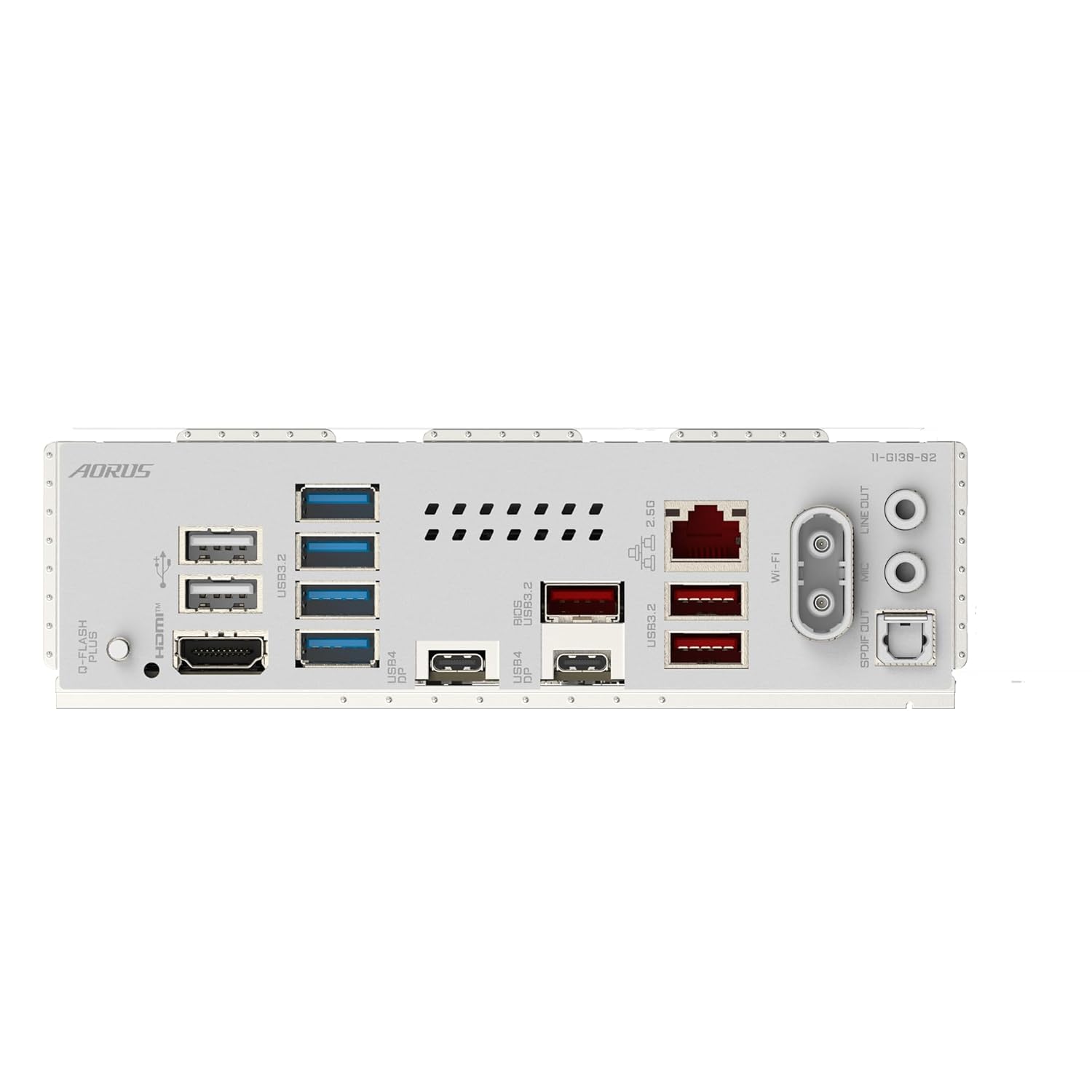

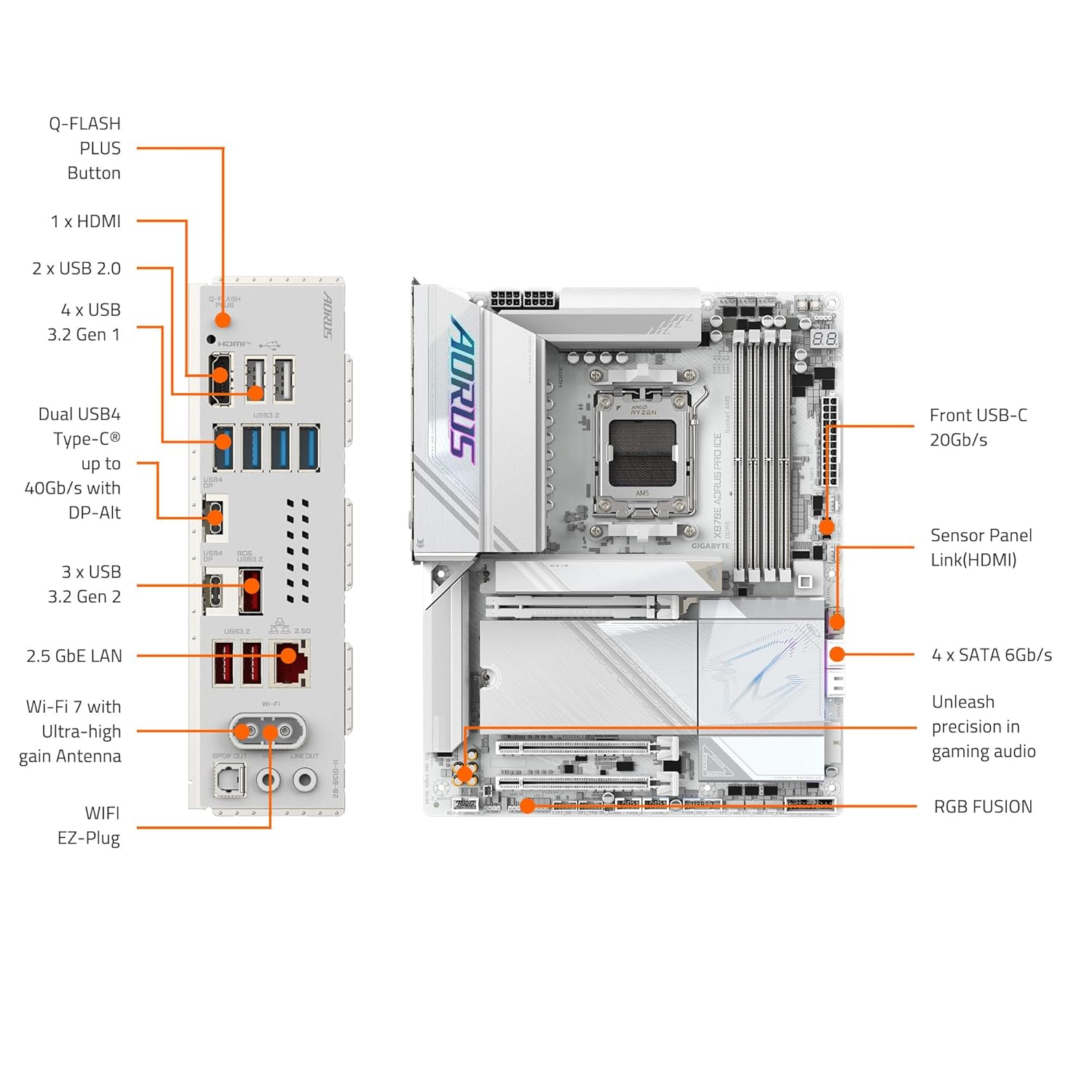

For connectivity, the X870E AORUS PRO ICE is packed with PCIe 5.0 support, four M.2 slots, and dual USB4 ports. With both front and rear USB-C options, along with a sensor panel link, this motherboard provides extensive versatility for all your peripherals and storage needs.
(as of Oct 03, 2025 16:16:21 UTC – Details)
Product information
| Specification | Details |
|---|---|
| Form Factor | ATX (30.5cm x 24.4cm) |
| CPU Socket | AMD AM5 |
| Chipset | AMD X870E |
| Supported CPUs | AMD Ryzen 7000 / 8000 / 9000 Series |
| Memory Support | DDR5 up to 256GB, 4 DIMM slots, AMD EXPO & XMP |
| Expansion Slots | 1 x PCIe 5.0 x16, 2 x PCIe x4 (4.0 & 3.0) |
| Storage | 4 x M.2 (PCIe 5.0/4.0), 4 x SATA 6Gb/s |
| USB Ports | 2 x USB4 Type-C, 3 x USB 3.2 Gen 2, 4 x USB 3.2 Gen 1, 2 x USB 2.0 |
| Networking | Realtek 2.5GbE LAN, Wi-Fi 7, Bluetooth 5.4 |
| Audio | Realtek ALC1220, 7.1-channel HD Audio, S/PDIF Out |
| Graphics Outputs | HDMI 2.1, DisplayPort via USB4 |
| Special Features | EZ-Latch, Q-Flash Plus, RGB headers, Thermal Guard |
| Operating System | Windows 11 64-bit |
| Warranty | 5 Years |
